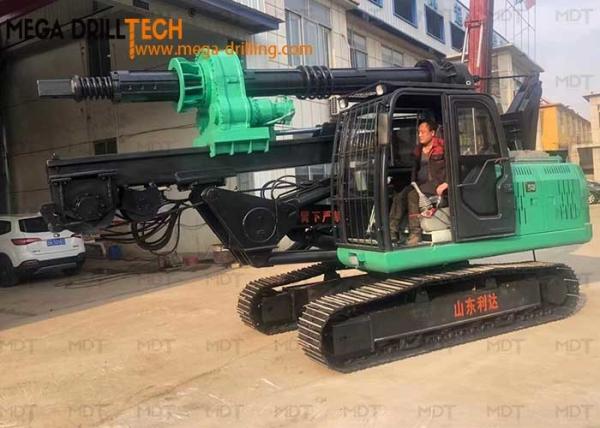

20m Bore Pipe Micropile Drilling Machine 88KW/2400r/min

Product Categories

HUNAN MEGA DRILLTECH CO., LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 20m Bore Pipe Micropile Drilling Machine 88KW2400rmin
Brand: Mega Drilltech
Price: 1 USD

Brand Name : Mega Drilltech

Model Number : MDT-20

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T, T/T

Contact Now

20m bore pipe drilling machine , micro-pile drilling machine,cheap drilling machine

Specification		Unit	Data
Max. Drilling Diameter		mm	1200
Max. Drilling Depth)		m	20
Engin	Model	/
Engin	Rated Power	kW	88KW/2400r/min
Rotary Drive	Max. output torque	kN .m	60
Rotary Drive	Rotary speed)	r/min	17-45
Pull-Down Cylinder	Max.pull-down piston push	kN	90
	Max.pull-down piston pull	kN	90
	Max.pull-down piston stroke	mm	2000
Main Winch	Max.pulling force	kN	100
	Max. single-rope speed	m/min	50
	Diameter of the steel wire rope	mm	20
Auxiliary Winch	Max.pulling force	kN	60
	Max. single-rope speed	m/min	50
	Diameter of the steel wire rope	mm	16
Traveling	Max. traveling speed	km/h	3.0
Traveling	Max.grade ability	%	30
Overall Drilling Weight		t	16
Dimension)		mm	8700×2300×3200
